Signature 30.2 Stereo Amplifier
Vacuum Tube Stage and LiFePO4 battery now included »
Offered as both an integrated stereo amplifier and two-channel power amplifier, Red Wine Audio’s Signature 30.2 was created for music connoisseurs seeking a sublime listening experience, dependability and value.
Carefully designed to deliver a well-balanced musical presentation and long-term listening pleasure, the Signature 30.2 amplifier combines the finest sonic attributes of classic tube amplification (midrange warmth, rich tonal character, and smooth high-frequency resolution) and solid-state amplification (rock-solid bass response, realistic dynamic range and clarity) to enhance the listener’s emotional involvement with the music.
As with all Red Wine Audio products, the Signature 30.2 stereo amplifier is powered by clean, high-current batteries that allow all the nuances of the music to emerge with remarkable coherence and integrity. By running on internal battery power and isolating itself from the AC power grid, the Signature 30.2 stereo amplifier is free from the entire AC to DC conversion process and the associated electrical noise problems that hinder the performance of conventional AC-powered amplifiers.
On the inside of the Signature 30.2 stereo amplifier is a unique circuit design that demonstrates our beliefs in using premium parts, shorter signal paths, and high-current battery power. On the outside you will enjoy elegant aesthetics and superb build quality. Every Signature 30.2 stereo amplifier is proudly hand-made in the USA and carefully tested, inspected, and packaged before making its journey to our highly-valued and satisfied customers.
Features
SMART module equipped
The Signature 30.2 stereo amplifier features a Red Wine Audio innovation… the SMART module (Seamless battery Monitoring and Auto Recharge circuiT). This is a custom-designed circuit board that continuously monitors the voltage of the internal batteries. If the voltage drops too low, the SMART module automatically turns off the Signature 30.2 and begins the battery recharge process for you.
Like a finely-tuned musical instrument…
The Signature 30.2 stereo amplifier is a highly refined and improved version of our award winning Signature 30. Listed below are the major refinements in its musical presentation:
- A warmer, and more seductive sound signature
- Greater dimensionality
- Added bass weight
- Sweeter top end
- Richer tone, without sacrificing any pace, rhythm and timing
The amplifier board in the Signature 30.2 has been heavily modified in order to achieve the sonic enhancements listed above. Below are examples of such refinements:
- A new output filter stage design that features all new, higher-quality components as well as all new filtering characteristics.
- The new output filter components are now hard-wired together (point-to-point) and have the speaker output wiring directly connected to them to offer an even shorter, cleaner signal path.
- A higher grade of PIO (paper-in-oil) input capacitor
- Modified input stage design, which also features higher quality parts such as resistors, dc offset pots, etc.
Also featuring:

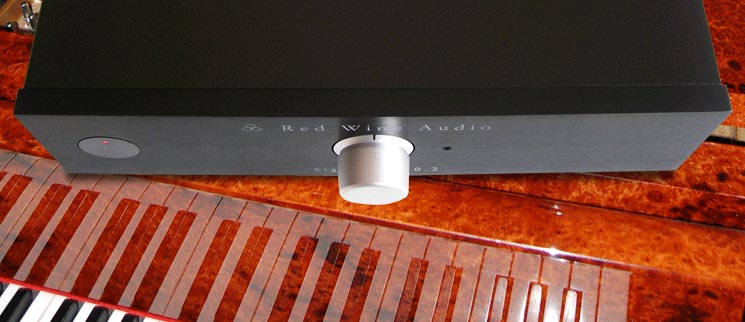

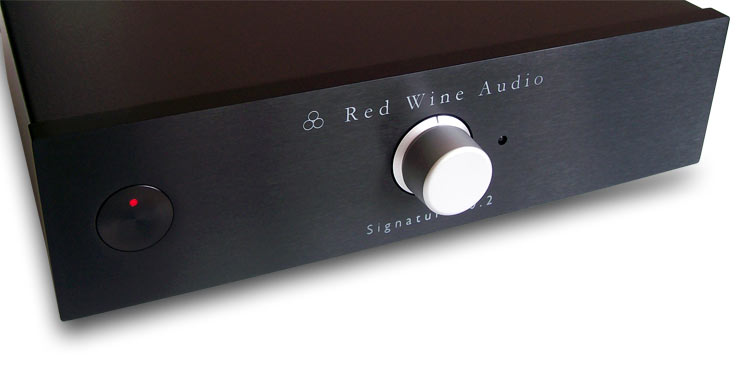

- Custom “touch-sensing” power on/off switch with built-in LED that emits a soft, red glow. This switch is mounted flush with the black-anodized aluminum front panel for a clean appearance and is also made of smooth, black-anodized aluminum.
- Black, powder-coated aluminum enclosure with a smooth, 0.55" thick black-anodized faceplate that is laser-etched. Silver-painted, machined aluminum knob (available with Signature 30.2 stereo amplifier with integrated precision stepped attenuator volume control with remote)

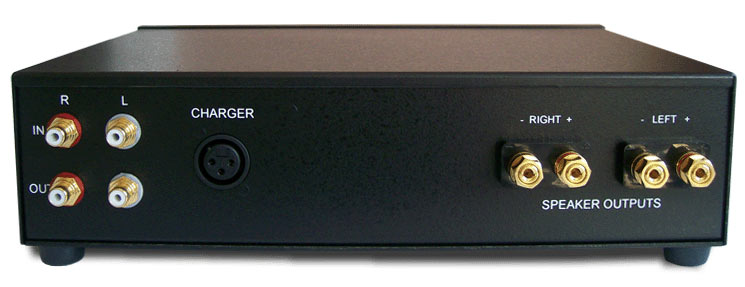

- Premium input and output jacks by Vampire
- Rapid-speed battery charger with universal input voltage (100 – 240Vac, 50/60Hz) and IEC power input jack, and output cable featuring a heavy-duty XLR plug
Reviews
“Minimalist to the core, with top-notch parts and a deeply tweaked circuit, this amplifier has already sidelined $45,000/pr battery-powered monos, given $10,000/pr muscle amps the fly-bye finger and butted heads with first-rate tube amps. I’ll tip my hand and reveal prior to the full review conclusion that the 30.2 will walk away with a Lunar Eclipse Award in the new year, only the fourth one to be given out in our 5 years of operation.”
“Red Wine Audio’s Signature 30.2 is one of my three favorite amps regardless of class or output devices… it sonically goes well beyond its own first incarnation to have turned into a bona fide ultrafi amp that’ll upset equilibrium in the upper ranks of overpriced eye candy for those who pay attention and evaluate with their ears.”
“Truly a sonic tour-de-force and NOT just at the price. This may be the finest all-around integrated I”ve heard.”
“The 30.2 offers one of the most musical presentations at this price point… the 30.2 delivers the goods!”
“Of all the amplifiers that I’ve tested in recent years, the Signature 30.2 is one of the best. Period.”
“Elegantly simple, functionally flawless and sonically whole, I couldn’t pass this one by. At the price, it strikes me as an utter sonic triumph and serves to remind me daily that different isn’t always better, though sometimes it very definitely is!”
Specifications
Power output |
30 Watts RMS per channel into 8-ohms at 0.04% THD+N |
|---|---|
Recommended nominal speaker impedance |
4 to 16 ohm |
Input Impedance |
20k (with volume control option), or 100k (power amp) |
Input sensitivity |
Approx. 0.5 Vrms |
DC Offset Voltage |
Hand-tuned to no greater than +/- 5mV |
Batteries |
2 x 12V, 5Ah Sealed Lead-Acid (SLA) connected in series (24V system) |
Battery charger |
12V, 1000mA SLA “auto-charger” |
Typical play time between full charges |
Varies between 12 to 24 hours — depending on speaker impedance, volume level, and musical demands |
Dimensions (Power Amp version) |
125" width x 9.5" depth (including rear panel jacks) x 3.55" height (including feet) |
Dimensions (Integrated Amp version) |
125" width x 10.5" depth (including volume knob and rear panel jacks) x 3.55" height (including feet) |
Weight (wihout charger) |
Approx. 14 lbs. |
Package weight |
Approx. 18 lbs. |
Proudly manufactured in the State of Connecticut, United States of America
Product design and specification subject to change or modification without notice.
